How to produce 6-35kv MV cable?
The range of 6-35 kV (kilovolts) cables refers to medium voltage power cables typically used for distributing electricity in various applications. Here's a breakdown of what this range signifies:
Voltage Rating: The cables are rated to operate at voltages ranging from 6 kV to 35 kV. This voltage range is considered medium voltage in the context of power distribution.
Applications: These cables are used for transmitting and distributing electrical power in industrial plants, commercial buildings, and utility substations. They are designed to handle higher voltages than low-voltage cables but lower than high-voltage transmission lines.
Construction: The construction of 6-35 kV cables includes insulation materials such as cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR) to withstand the higher voltages without breakdown.
Range of Use: They can be used for both underground and overhead installations, depending on the specific requirements of the power distribution network.
MV Cable Production Project
1. Cable Range: 6-35kw, include single core, multi cores, armored cable, etc.
2. Main machines below: two plans to choices, 2 choose 1 according customer cable range.
Plan #1: Not includesteel wire armored cable.
Plan #2: Include steelwire armored cable

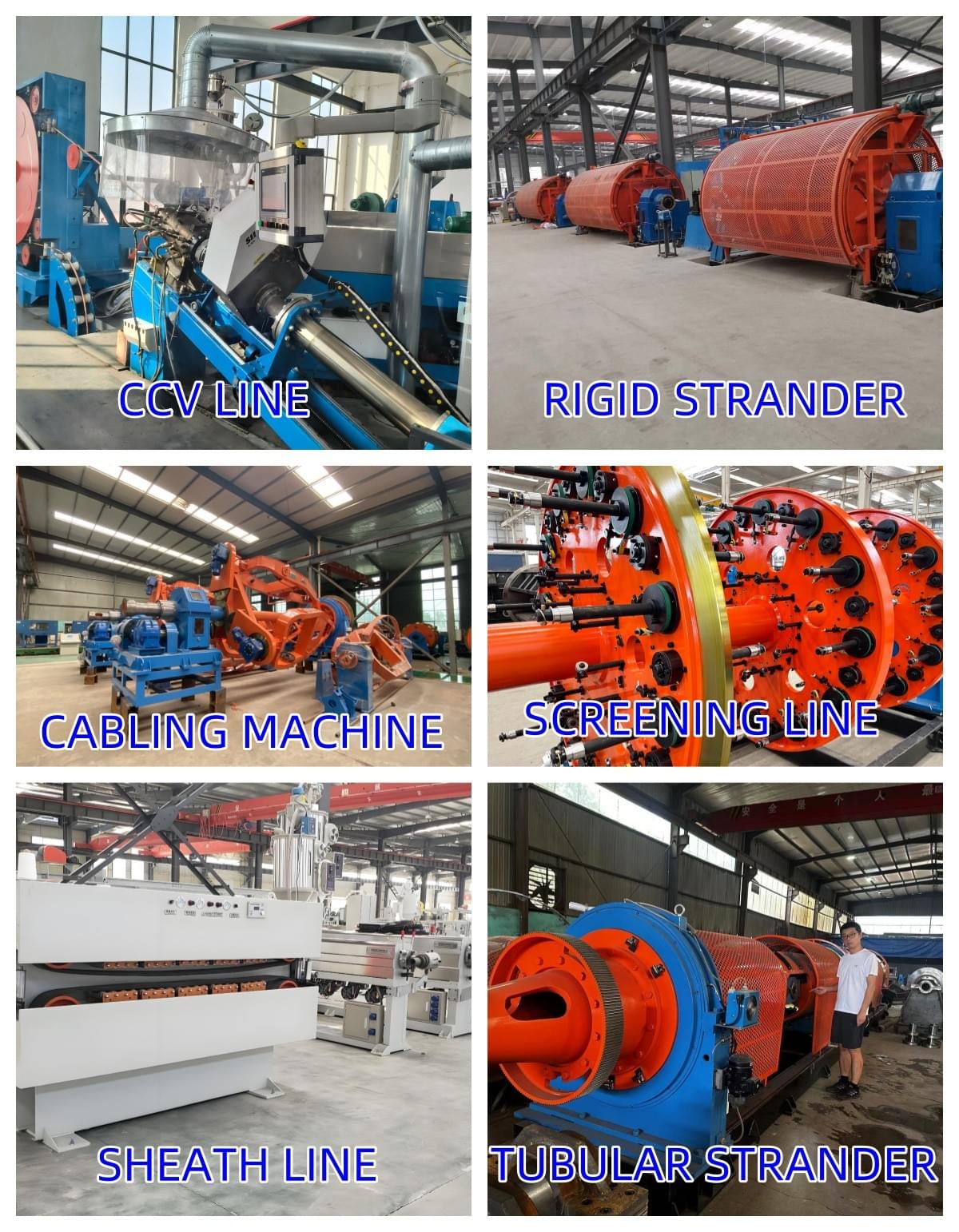

Machines pictures below:
The following examples illustrate the specific cable models and the machine models used.
1.Single core MV cable:
- Rigid strander：JLK630-1+6+12+18.
- CCV line 65+120+90 Tripe co-extrusion line.
- Copper tape wrapping unit :PB600 Non-metallic taping unit, like copper tape, Non-woven fabrics, etc.
- Copper screening unit: PJ255-72 Aluminum or copper wire screening.
- Cable sheath extruder: SJ200 Outer sheath macine.
2. Multi cores MV cable:
- Rigid strander:JLK630-1+6+12+18+23, 61 conductors twisting.
- CCV line:65+120+90 Tripe co-extrusion line.
- Drum twister:JPD2500-1600x4+2500x1 With copper, aluminum, steel wire armoring and screening.
- Copper tape wrapping unit:PB600 Non-metallic taping unit, like copper tape, Non-woven fabrics, etc.
- Steel tape armoring unit: ZK800.
- Cable sheath extruder: SJ200 Outer sheath machine.
More machine video click here:
