Multi Core Power Cable Making Machine Cradle Type Cable Laying Machine 1+6/800
The Laying up Machine is used for cabling the 3, 4, 5, multi core, rubber cables, plastic power cables, telephone cables, control cables, PVC cables, XLPE cables with or without steel armouring, mining cables, low and medium low voltage power cable.
More Details
Multi Core Power Cable Making Machine Cradle Type Cable Laying Machine 1+6/800
1. Description
- The cage type cable laying-up machine is 100% back twisted and stranded.
- Designed for laying up power conductors with 3-5 round cores and straight or sector shape cores.
- Equipped with dual wheel pulling capstan when running small size cables or with haul off caterpillar for bigger power cables.
- The machine is provided with HMI+PLC control system for pre-setting laying up pitch and for speed synchronization with the take up.
- Optionally maximum of 24 pieces of filling bobbins.
2. Main components
- Center pay-off stand,
- grinding cage host,
- wire die base,
- wrapping machine,
- armoring machine,
- meter counter,
- single wheel traction device,
- taking-up and traversing device,
- transmission system and electrical system.

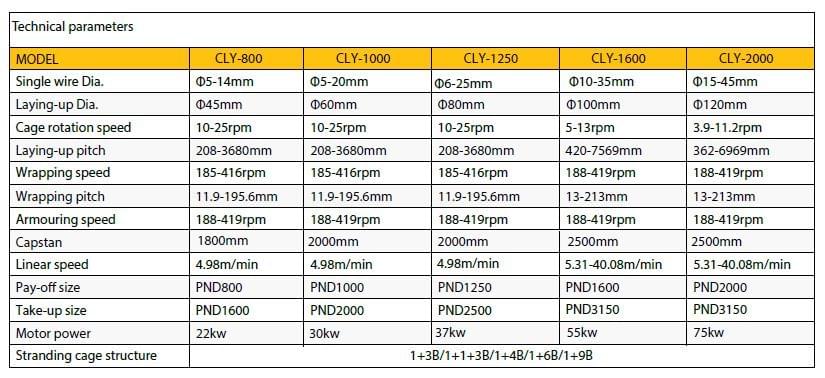

3. Features
- It adopts new type drum twisting structure, then it is highly efficient and convenient.
- This machine includes tape lapper, pedrail driven and rotary take-up. They are operated with other machines, so its pitch is exact. The pay-off adopts single motor gyration which can keep rotating with the rotary take-up or remains working by itself.
- The pay-off is passive style, and the tensile force is adjustable.
- The take-up adopts up-wheel structure to strengthen the rigid, steady and reliability.
- It is equipped with multi-safeguards which can be manipulated easily and reliably.
